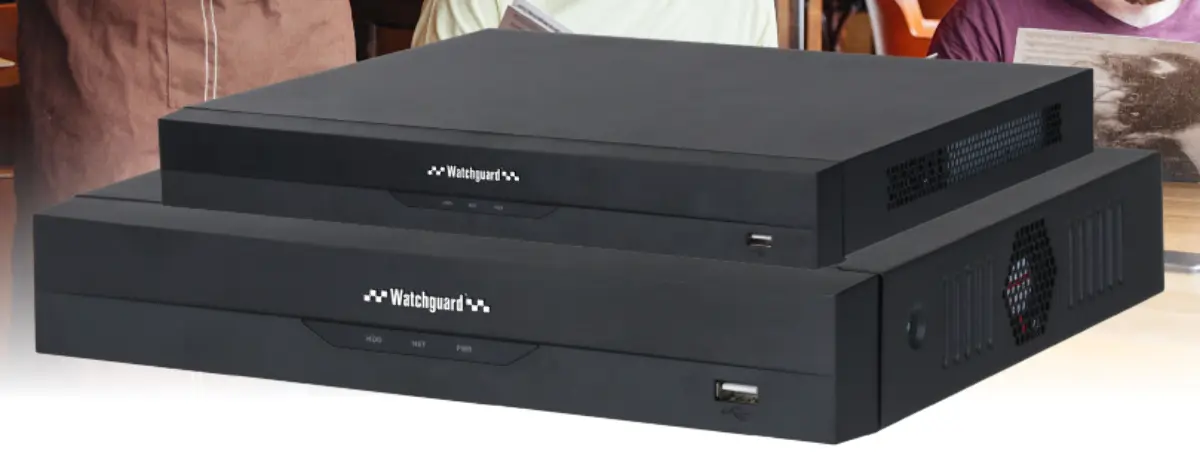

Compact AI Series 8CH PoE NVR with 1 x HDD Bay
Manufacturer
Watchguard
Availability
In Stock
Sale
Excluding taxes: $0.00Description
The Watchguard™ Compact AI Series brings the best of AI surveillance features in an affordable package. The NVR8COM-I allows you to bring AI face recognition or AI person/vehicle detection to your CCTV installations, guaranteeing that important events are detected and can be acted upon. This NVR is perfect for new systems or replacement of existing NVRs to upgrade to AI capable surveillance.
Product features:
• Records up to 16.0 megapixel (4920 x 3264)
• Up to 256Mbps incoming bandwidth (recording/outgoing)
• Decoding 8CH@4MP/25fps (AI disabled), 8CH@1080P/25fps (AI enabled)
• AI face recognition and database comparison by NVR up to 1 channel, or;
• AI human/vehicle detection via tripwire/intrusion rule by NVR up to 2 channels, or;
• AI human/vehicle detection via motion detection by NVR up to 8 channels
• Support for ANPR up to 4 channels (automatic number plate recognition)
• 1 x SATA bay with support for up to 16TB capacity HDDs per bay
• Built-in 8 port power over Ethernet switch
• HDMI and VGA simultaneous video output
• Backup footage via external USB device or local network
Product features:
• Records up to 16.0 megapixel (4920 x 3264)
• Up to 256Mbps incoming bandwidth (recording/outgoing)
• Decoding 8CH@4MP/25fps (AI disabled), 8CH@1080P/25fps (AI enabled)
• AI face recognition and database comparison by NVR up to 1 channel, or;
• AI human/vehicle detection via tripwire/intrusion rule by NVR up to 2 channels, or;
• AI human/vehicle detection via motion detection by NVR up to 8 channels
• Support for ANPR up to 4 channels (automatic number plate recognition)
• 1 x SATA bay with support for up to 16TB capacity HDDs per bay
• Built-in 8 port power over Ethernet switch
• HDMI and VGA simultaneous video output
• Backup footage via external USB device or local network
Specifications
General
Video Input
8 Channels
PoE
Yes
HDD Capacity
1
Processor & Operation
Industrial-grade processor, Embedded Linux OS, Web Interface / Local GUI
Interoperability
ONVIF 21.12(Profile T; Profile S; Profile G); CGI; SDK
App Integration
iOS / Android
Recording
Recording Resolution
Configurable from: 16.0MP (4920 x 3264) to D1 (704 x 480)
Network Bandwidth (AI Disabled)
256Mbps (incoming/recording/outgoing)
Network Bandwidth (AI Enabled)
180Mbps (incoming/recording/outgoing)
Video & Audio Compression
Video: Smart H.265+ / H.265 / H.264 / H.264+ / MJPEG, Audio: G.711a / G.711u / PCM / G726
Playback Channels
8 channels
Playback Modes
General Recording, Motion Detection, Intelligent Events, Alarm Triggers
Decoding Capacity (AI Disabled)
8CH@4.0MP/25fps
Decoding Capacity (AI Enabled)
8CH@1080p/25fps
Backup Method
USB device / network
Interface
HDD
1 x SATA bays, up to 16TB
Audio
1 channel input (RCA), 1 channel output (RCA)
Alarm Interface
-
Alarm Types
Record, snapshot, IPC external alarm output, audio, buzzer, log, preset, email
Alarm Actions
Begin record, take snapshot, camera external alarm output, audio, buzzer, NVR log, camera preset, email
Display Output
1 x HDMI (up to 3840 x 2160), 1 x VGA (up to 1920 x 1080)
Display Split
1st screen: 1/4/8/9, 2nd screen: 1/4/8/9
Display Mode
HDMI1 + VGA1 (Mirror)
Network Input
1 x 1000Mbps Ethernet uplink, 8 x PoE 100Mbps (802.3af/at)
Network Functions
HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search, Easy4ip
USB & Other Inputs
1 x Front USB 2.0, 1 x Rear USB 2.0
Artificial Intelligence
NVR Operated AI
Face Detection, Face Recognition, AI Tripwire/Intrusion and AI Human/Vehicle Detection
Supported Camera AI
Face Detection, Face Recognition, AI Tripwire/Intrusion and AI Human/Vehicle Detection, People Counting, Crowd Distribution, Heatmap, ANPR, Audio Detection, Thermal Alarm, Fisheye Dewarp (Via PC web interface only)
Face Detection Functions
Gender, Age Group, Glasses, Expressions, Face Mask, Beard
Face Detection (By NVR)
1 channel (up to 12 face images per second, per channel)
Face Detection (By Camera)
8 channels
Face Recognition Capacity
NVR Supports up to 10 face databases and 200,000 face images
Face Recognition (By NVR)
1 channel (Face detection via NVR video stream analysis; Face recognition performed by NVR) 4 channels (Face detection performed via Face Capture cameras via image stream; Face recognition performed via NVR)
Face Recognition (By Camera)
8 channels
Human/Vehicle Detection Functions
AI Tripwire & Intrusion (IVS), AI Motion Detection (SMD)
Human/Vehicle Detection (By NVR)
IVS: 2 channels (10 rules per channel) SMD: 4 channels
Human/Vehicle Detection (By Camera)
IVS: 8 channels, SMD: 8 channels
ANPR Functions
Up to 20,000 plate numbers, blocklist & allowlist
ANPR (By Camera)
4 channels
Video Metadata Functions
-
Video Metadata (By NVR)
-
Video Metadata (By Camera)
-
Environment
Power Supply
53VDC / 1.812A
Power Consumption
NVR: <10W (without HDD) / PoE: Max 25.5W for single port, 72W total
Operating Environment
-10°C ~ +55°C / 10 ~ 93%RH
Rackmountable
no
Rackmount Units
-
Dimensions
260mm x 232.7mm x 47.6mm
Weight
0.92kg (without HDD)
Warranty (Years)
4
Shipping Weight and Dimensions includes product packaging
Width
380 mm
Height
120 mm
Depth
315 mm
Weight
3.00 kg
